2. Electrical & Mechanical Specifications

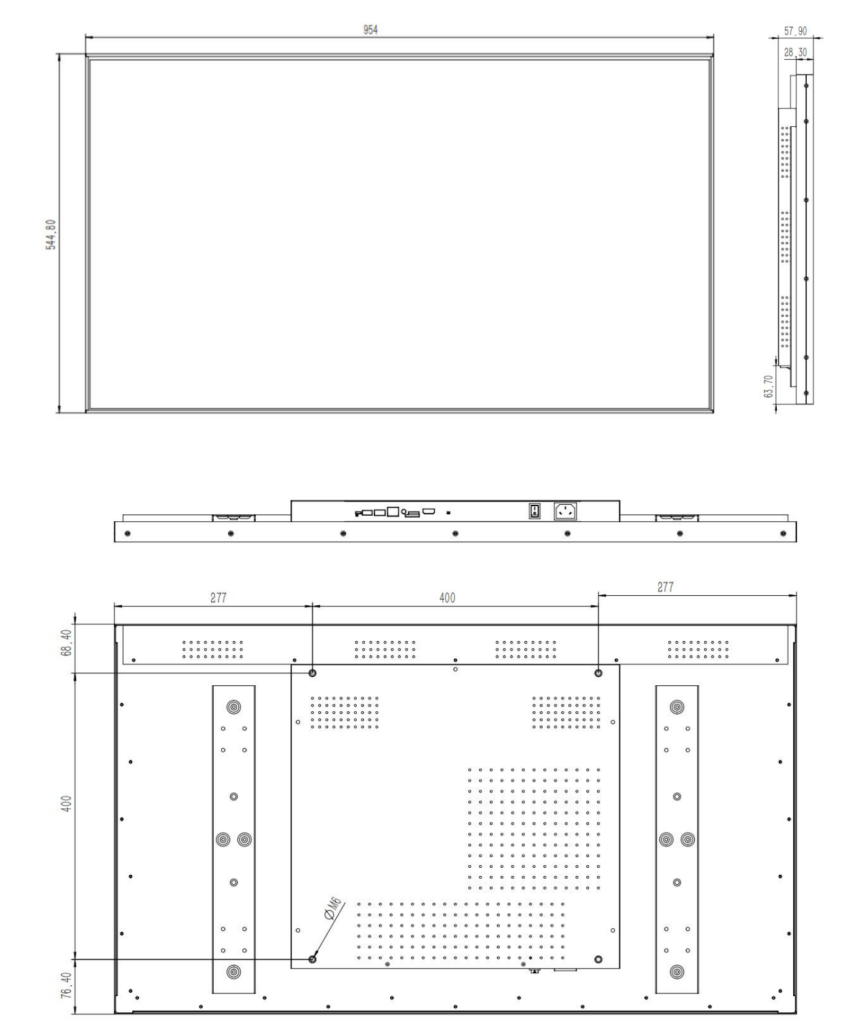

3. Dimensions & Mounting

• Overall Width: Approx. 954–956.10 mm (slight variations between 2K and 4K versions)

• Active Display Area: 941.18 mm × 529.42 mm (4K version)

• VESA Mounting Pattern: 400 × 400 mm

• Mounting Screws: Ø16 (2K version) / Φ4×M6 (4K version)

4. Accessories

• Power Cable: National standard 3-pin plug, 1.5 m × 1

• User Manual: × 1

• Warranty Card / Certificate of Quality: × 1

• Key: None

5. Core Selling Points

• 43-Inch Golden Ratio: With a 941.1 mm active display width, it fits mid-sized spaces such as corridors, hallways, and lobbies.

• Dual Resolution Options (2K / 4K): Select based on specific application requirements to balance cost and image performance.

• 5000:1 High Contrast Ratio: Delivers rich gradations, deep blacks, and vivid color reproduction.

• <8ms Rapid Response Time: Smooth video playback without ghosting or motion blur.

• Dual Brightness Configurations: 450 cd/m² for standard indoor environments; 700 cd/m² for high-ambient-light settings.

• 4mm Ultra-Narrow Bezel: Independent corner-joint narrow bezel design delivers a nearly seamless multi-screen tiling appearance.

• Premium Metal Housing: Aluminum alloy bezel paired with a cold-rolled steel back plate in a minimalist black finish.

• Lightweight Non-Tempered Glass Design: Net weight is only 10 kg, simplifying wall-mount installation and handling.

• Low Power Consumption: Runs at just 90W operating power and ≤0.5W in standby, lowering long-term operating costs.

• 50,000-Hour Extended Lifespan: Engineered for continuous 24/7 commercial-grade operation.
